Tuya DIY Mini WIFI+RF433 Smart Curtain Switch Module DIY, RF433 remote control optional, Tuya/Smartlife APP Remote Control, Compatible with Alexa Echo and Google Home, with Tuya ESP chip
No need replace your Motor or Wall Switch
Hidden into wire box, save room and not influence docoration style

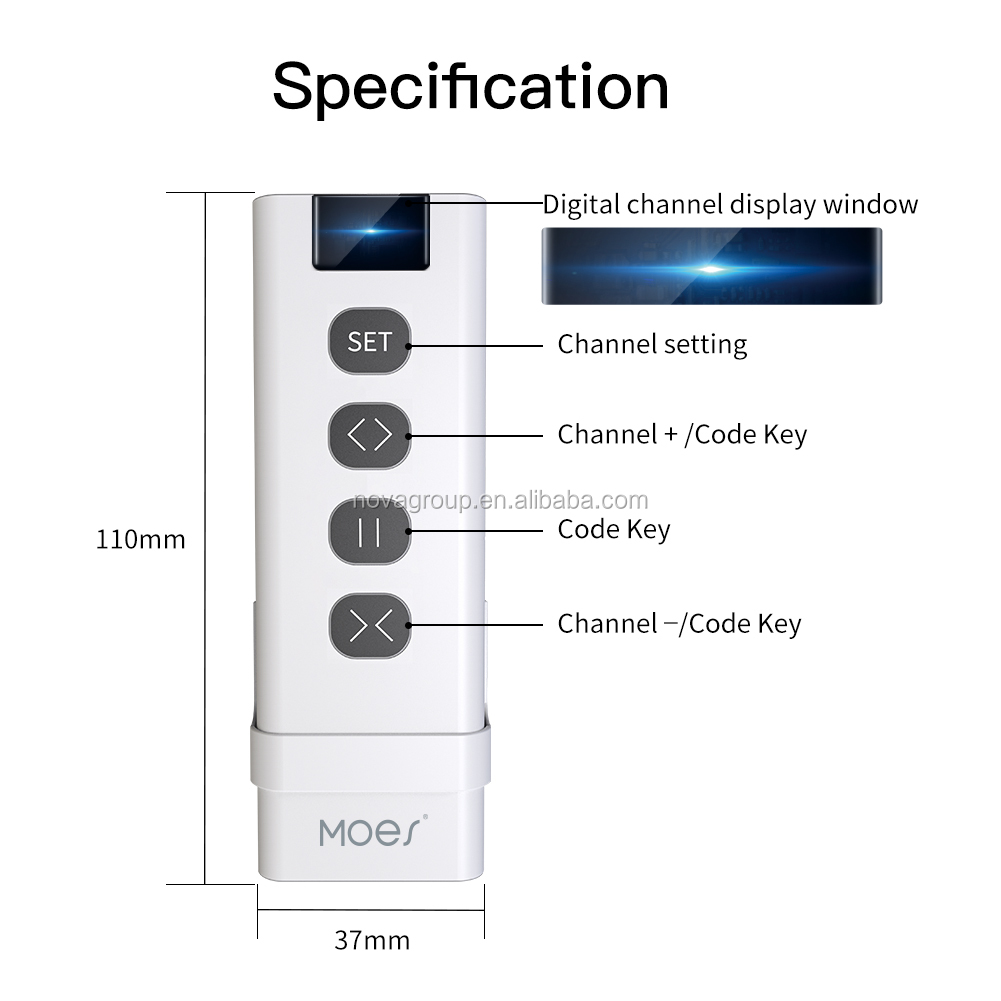

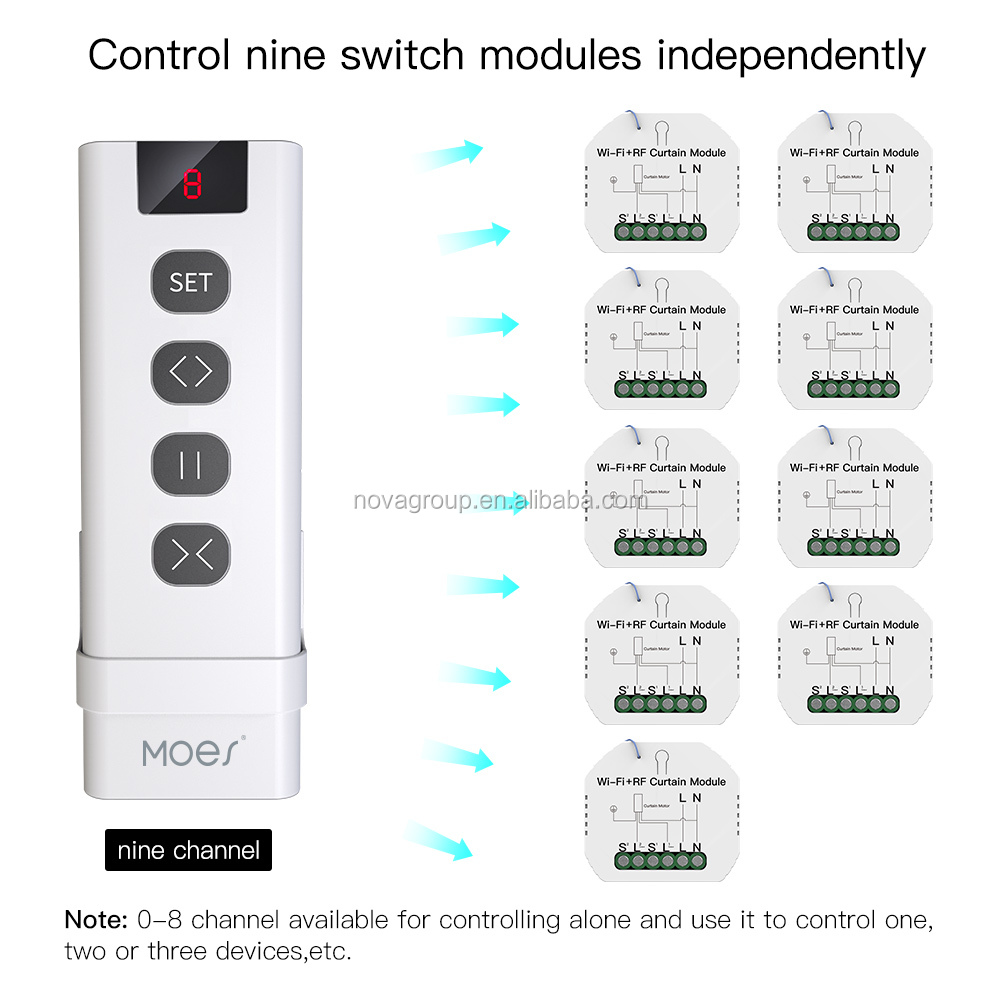

9 Channels RF433 Remote Control for "WIFI+RF433 Curtain Switch"
Working voltage:DC12V
Working frequency: 433.92MHz
Working current:≤16mA
Encoding mode:Imitation learning code
Number of channel: 9
Working temperature:-20℃ - +60℃
1 Channels RF433 Remote Control for "WIFI+RF433 Curtain Switch"
Working voltage:DC12V
Working frequency: 433MHz
Working current:≤18mA
Encoding mode:Imitation learning code
Number of channel: 1
Working temperature:-20℃ - +60℃
Note before order:
1. Please check your motor is with 4 wires before make your order.
2. This roller blinds switch module can not work with DC motor.
Parameter
Product type: WiFi + RF433 Curtain Module
Voltage: 110-240V AC 50/60Hz
Current: 3A
WiFi frequency: 2.4GHz-2.4835GHz WiFi
RF frequency:433MHz,encoding 1527
Operation temp: -10℃-+40℃
Case temp: Tc +80℃(Max)
Operation range:≤200m
Dims(W*D*H): 46*46*18mm(without clip)
IP rating: IP20
Use with Much More Convenience: A really good substitution for one more new smart roller blinds switch to work with your traditional roller blinds switch to realize intelligence. Also,it can be connected with your roller blinds shutter motor to smartly control your roller shutter. No more need to buy a new smart curtain switch.
RF and Wireless Remote Control: Enable to remotely control your connected appliances on your smart phone wherever you are. 2.4 b/g/n Networks provides the needed connection to the DIY Switch Module without the need of a separate HUB.(Compatible with Android&iOS.)More importantly,this curtain switch module is built-in RF433 frequency,so it can be controlled with remote control switch with encoding 1527.
Hands-free Voice Control: Compatible with Amazon Alexa and Google Home for easy voice control,providing your smart life for controlling curtains with much more convenience.
Timer Setting: Take full control of your roller blinds intelligently with the timer feature on your App,which enables to open / close them at a specific time automatically. Automate your home curtains via 3 timing types:schedules timing,countdown timing and loop timing.
Family Sharing: One device can be shared to different family members that means one ID is able to control multiple curtains,or multiple users can control one curtain.Control your smart home with your family members or friends together.
Q&A:
Q&A:
1. Q: Does this work with Google Home?
A: Yes,it does.And it’s also compatible with Alexa.
2. Q: Do I need to buy a hub to work with the curtain module.
A: No,there is no need for you to buy a hub and no hub required for the module.
3. Q: Can I control the module with my own remote control switch?
A: This curtain switch module is RF433 built in and it can only work with RF433 remote control switch with encoding 1527.
4. Q: Shall I buy a smart curtain switch to work with this module?
A: No,you can just connect the module to your traditional curtain switch to realize intelligence.
5. Q: What should I do if I can’t configure the curtain module?
A: a: Please check whether device is powered on.
b: Make sure your mobile and curtain module are under the same 2.4GHz wifi network.
c: Whether it’s in good internet conditions.
d: Make sure the password entered in App is correct.
e: Make sure the wiring is correct.
6. Q: Which products can I control with the device?
A: Curtains,shutter,blind....
7. Q: What happens if the wifi goes off?
A: You can still control the device connected to the curtain module with your traditional curtain switch and once wifi is active again the device connected to the curtain module will connect automatically to your wifi network.
8. Q: What should I do if I change the wifi network or change the password?
A: You can connect the module to the wifi network according to the App User Manual.
9. Q: How do I reset the device?
A: Power on/off device 5 times or press the reset key for about 10 seconds until the beeper on the module sounds continuously.
